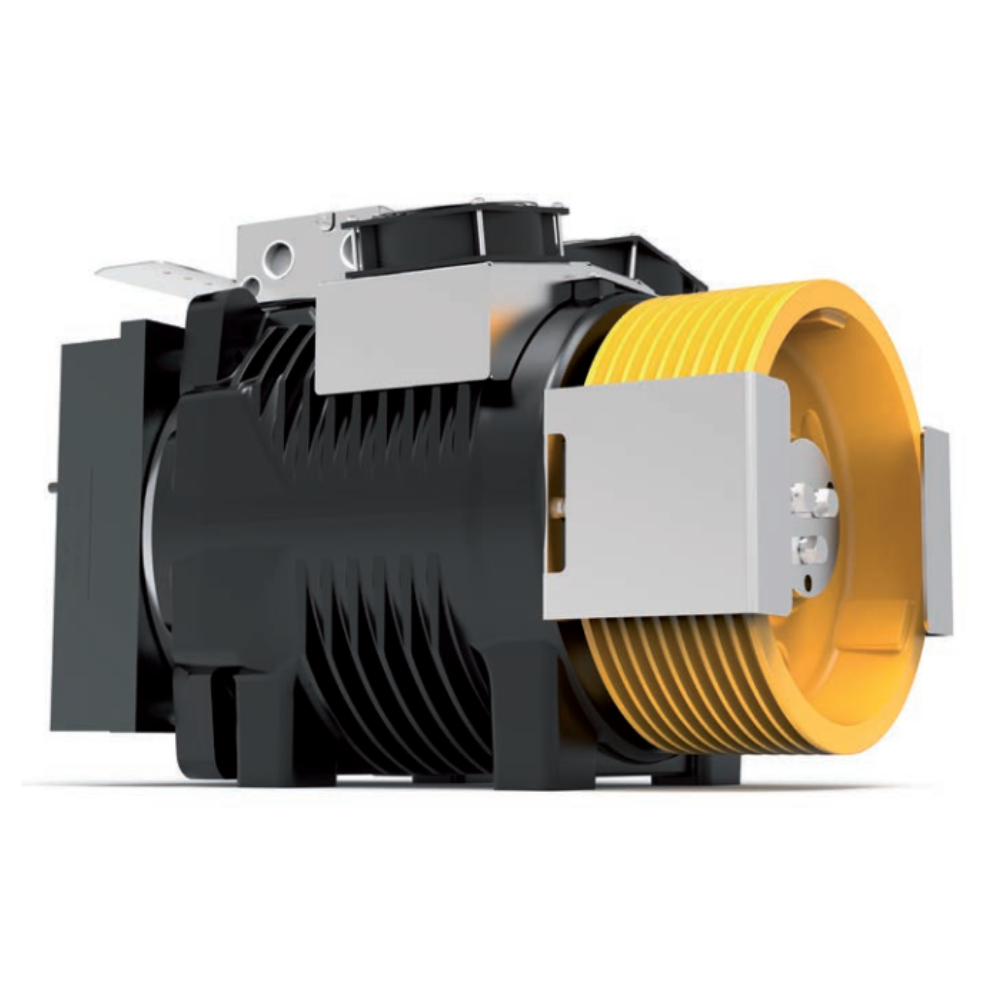

Gearless machine Sicor SG40B(F), import from Italia:
* Rated load in 550-630kg, Speed 1.75m/s, Traction sheave 320mm, Power range 13.1kw, 5 rope D8x12
* Rated load in 750kg, Speed 1m/s, Traction sheave 320mm, Power range 6.1kw, 6 Rope D8x12
* Rated load in 750kg, Speed 1.75m/s, Traction sheave 400mm, power range 14.7kw, 5 rope D10x17
Rated Torque – without fan 410Nm (S3 40%)
with fan 490Nm (S3 40%)
Max Load in 2:1 – 2000kg (160mm traction sheave)
Car speed – 0,63 … 2,5m/s
Power Range – 5,1 … 19,5 kW
Traction Sheaves – 120 … 440mm
Max Static Load – 34,3 kN – 3.500kg
Max Width – 340mm
Braking Torque – 2x410Nm (SG40/F) – 2x600Nm (SG40HF)
Max Weight – 238kg (SG40F) – 245kg (SG40HF)
