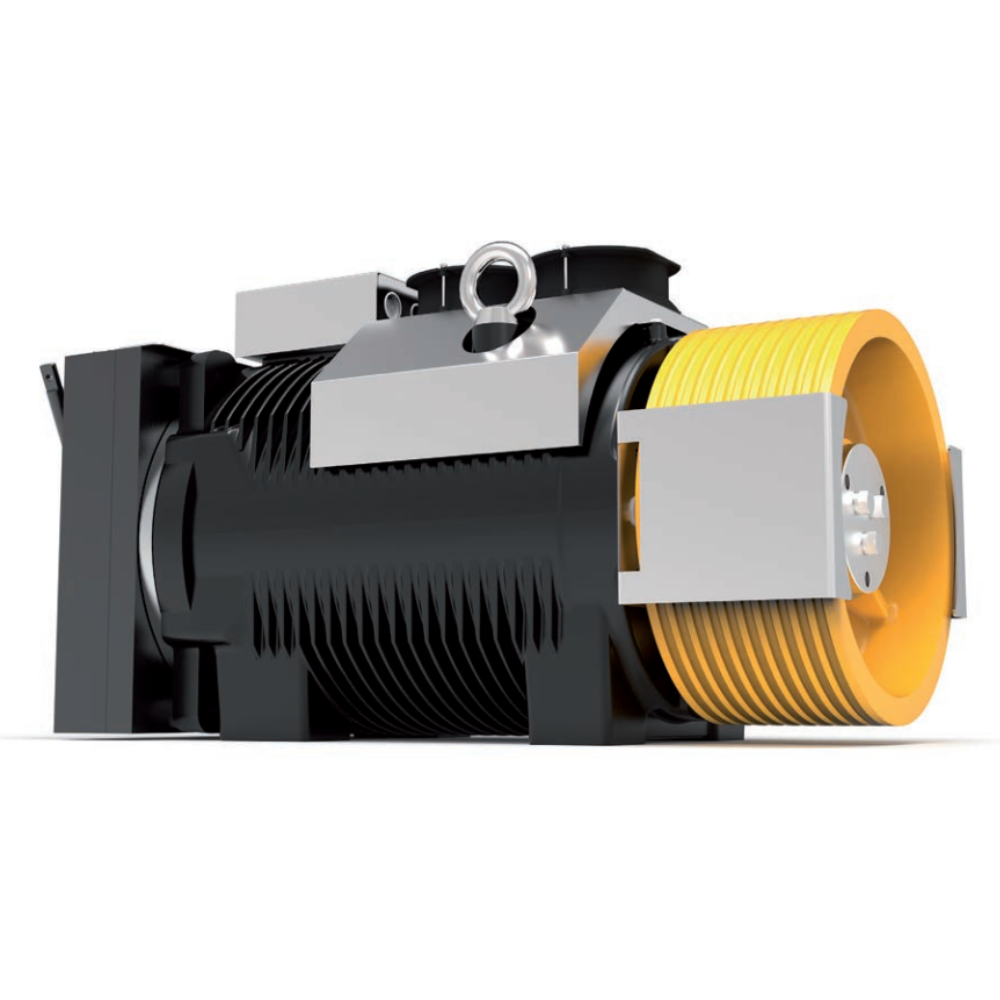

Gearless machine SG70F, made in Italia
Rated Torque – without fan 1635Nm (S3 40%)
with fan 1960Nm (S3 40%)
Max Load in 2:1 – 3000kg (440mm traction sheave)
Car speed – 0,63 … 2,5m/s
Power Range – 8,2 … 49,3 kW
Traction Sheaves – 320 … 600mm
Max Static Load – 58,9 kN – 6.000kg
Max Width – 425mm
Braking Torque – 2x2200Nm
Max Weight – 713kg
