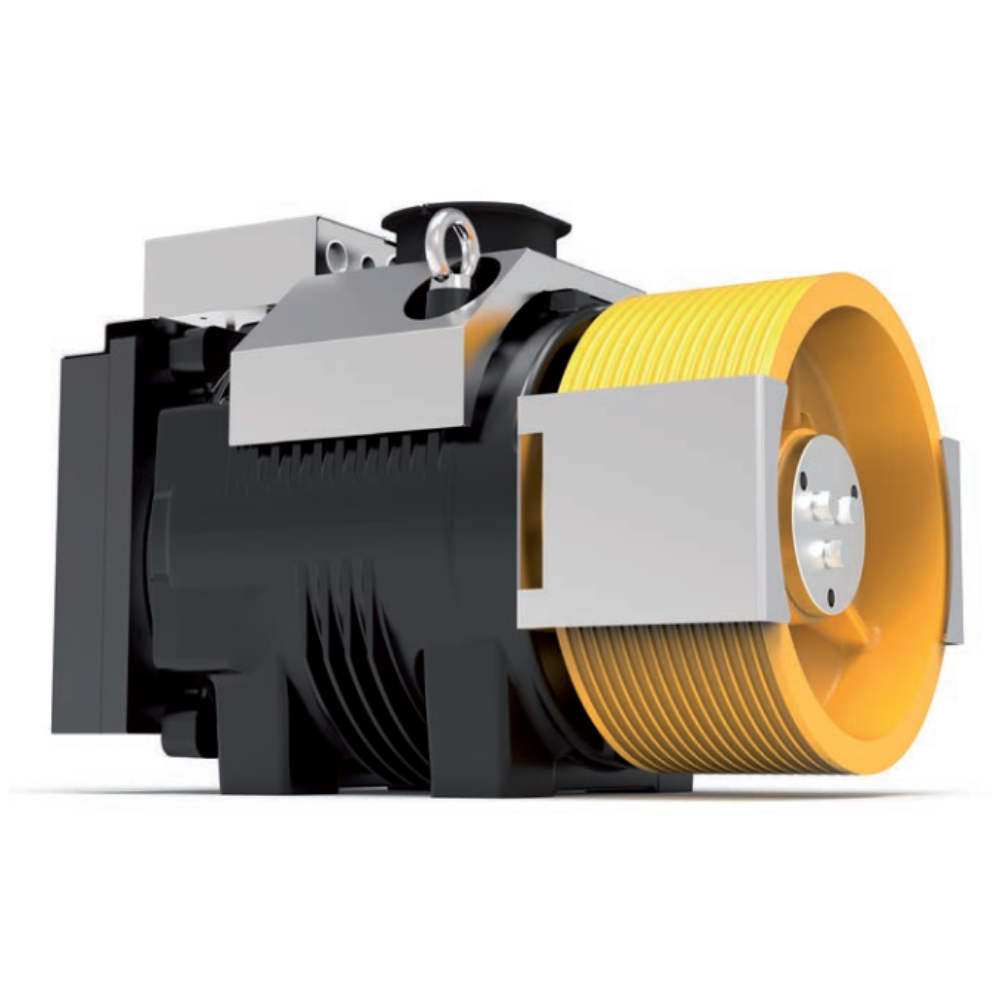

Sicor geared Machines SG62BF (1600-2000kg)

Product code: SG62F

Call

Gearless machine SG62F, made in Italia

* Rated load in 1600kg, speed 2m/s, traction sheave 400mm, power range 26.3kw, 10 rope D10 x 17

* Rated load in 2000kg, speed 1m/s, Traction sheave 400mm, Power range 13.2kw, 8 rope D10 x 17

* Rated load in 2000kg, speed 1.6m/s, Traction sheave 360mm, Power range 26.3kw, 14 rope D8 x 12

* Rated load in 2000kg, speed 2m/s, Traction sheave 360mm, Power range 32.9kw, 14 rope D8 x 12



Quantity

Details



Rated Torque – without fan 1090Nm (S3 40%)

                              with fan 1310Nm (S3 40%)

Max Load in 2:1 – 2000kg (400mm traction sheave)

Car speed – 0,63 … 2,5m/s

Power Range – 5,5 … 32,9 kW

Traction Sheaves – 320 … 600mm

Max Static Load – 54 kN – 5.500kg

Max Width – 419mm

Braking Torque – 2x1200Nm

Max Weight – 510kg
