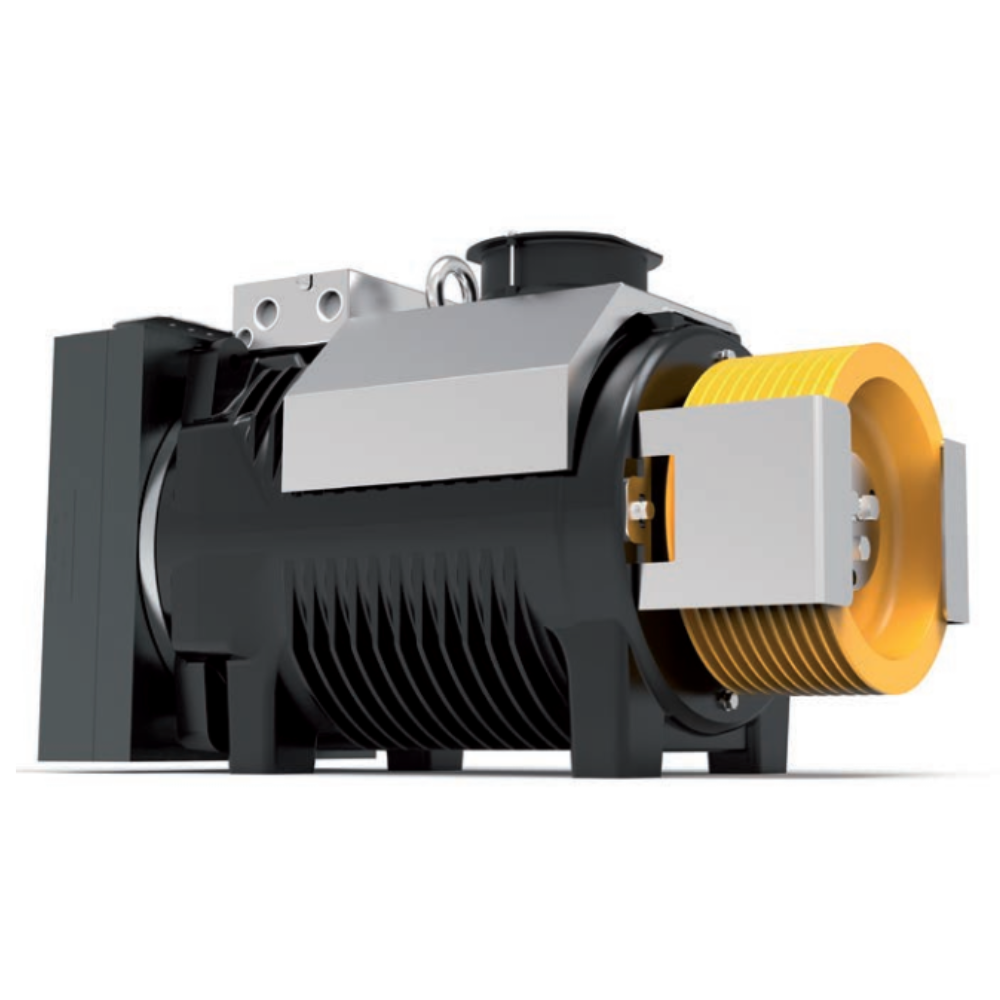

Gearless machine SG58F, made in Italia:
* Rated load in 1600kg, speed 1m/s, Traction sheave 320mm, Power range 13.4kw, 11 ropeD8x12
* Rated load in 1600kg, speed 1.6m/s, Traction sheave 320mm,Power range 21.7kw, 11 rope D8x12
Rated Torque – without fan 885Nm (S3 40%)
with fan 1065Nm (S3 40%)
Max Load in 2:1 – 2000kg (320mm traction sheave)
Car speed – 0,63 … 3m/s
Power Range – 6 … 34,6 kW
Traction Sheaves – 120 … 440mm
Max Static Load – 39,2 kN – 4.000kg
Max Width – 340mm (SG58) – 353mm (SG58F)
Braking Torque – 2x1200Nm
Max Weight – 460kg
