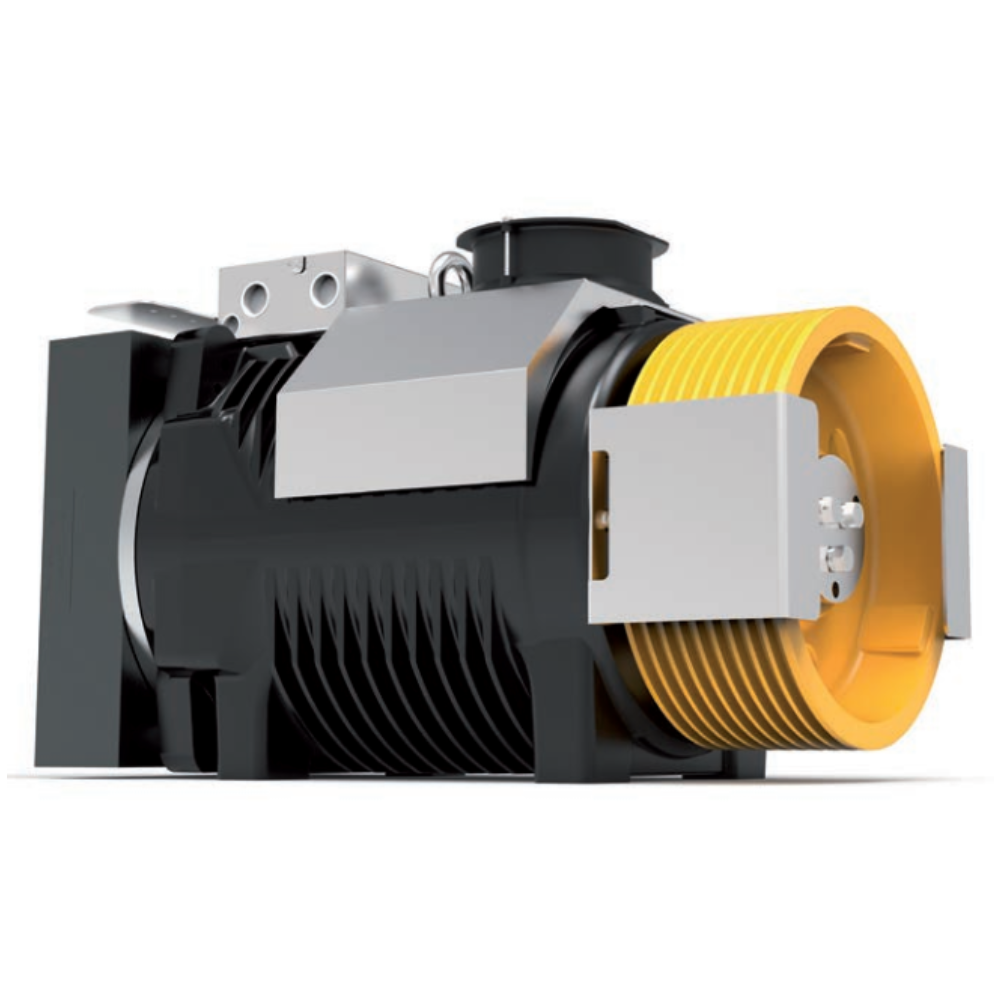

Gearless machine SG53, made in Italia:
* Rated load in 1275 - 1350kg, speed 1.5m/s, Traction sheave 320mm, Power range 18.4kw, 9 rope D8x12
* Rated load in 1275 - 1350kg, speed 2m/s, Traction sheave 360mm, Power range 19.2kw, 8 rope D8x12
Rated Torque – without fan 750Nm (S3 40%)
with fan 900Nm (S3 40%)
Max Load in 2:1 – 1600kg (320mm traction sheave)
Car speed – 0,63 … 3m/s
Power Range – 5,1 … 29,3 kW
Traction Sheaves – 120 … 440mm
Max Static Load – 39,2 kN – 4.000kg
Max Width – 340mm (SG53) – 354mm (SG53F)
Braking Torque – 2x850Nm
Max Weight – 382kg
