Sicor geared Machines SG48BF

Product code: SG48BF

Call

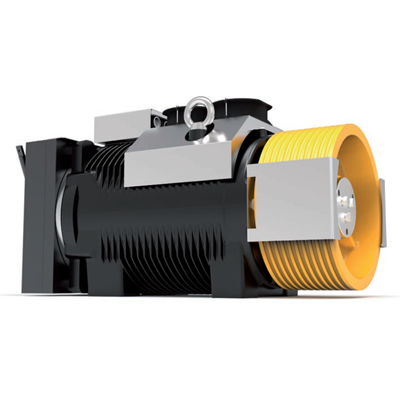

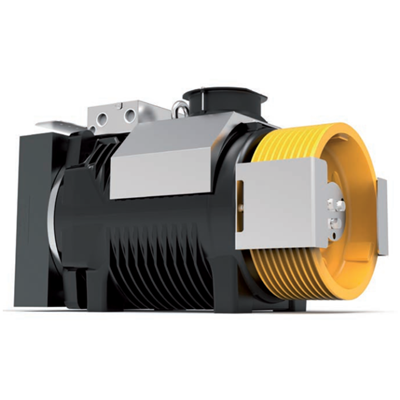

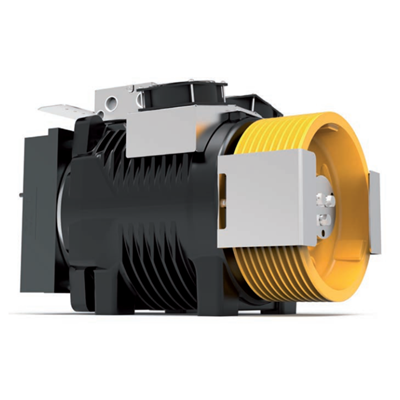

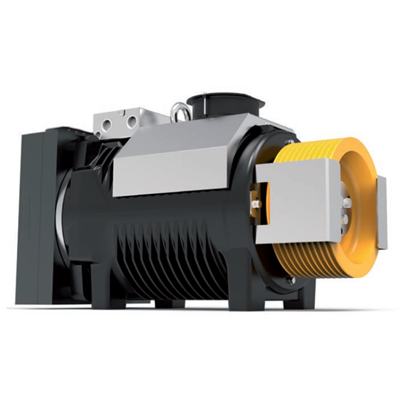

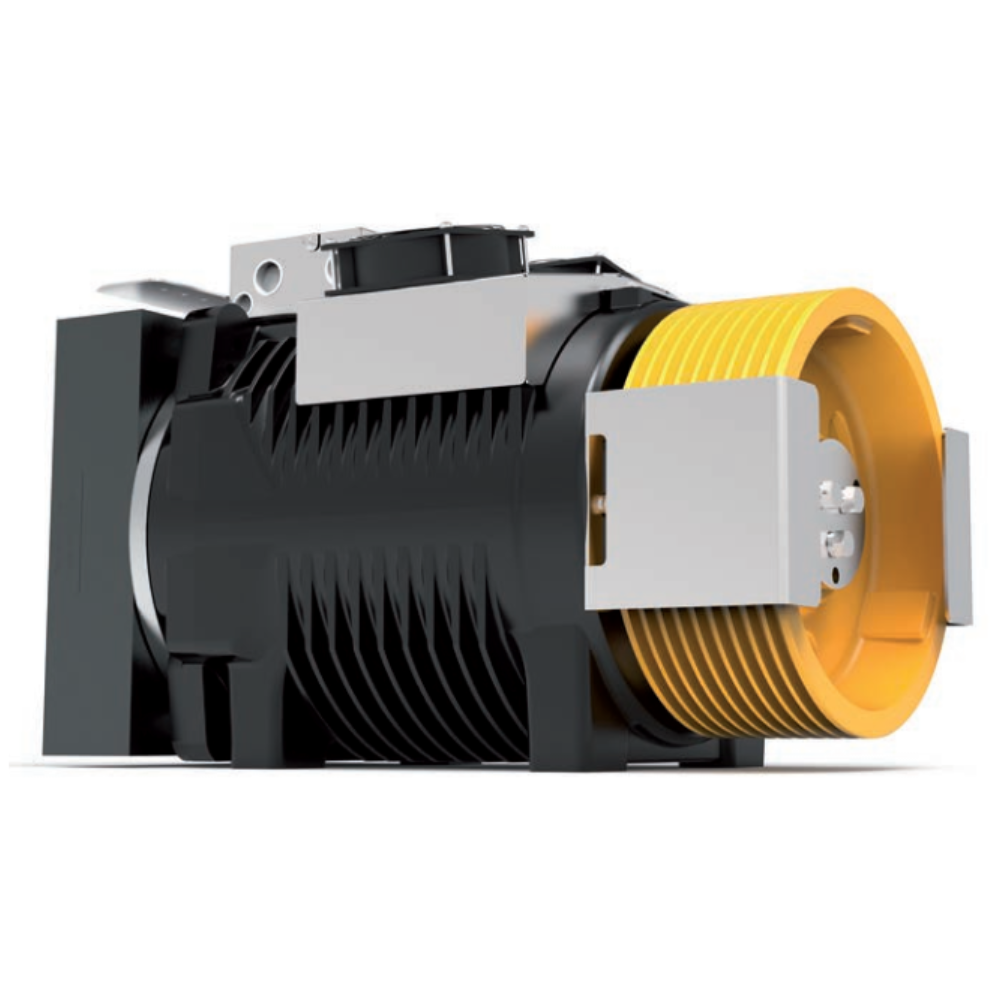

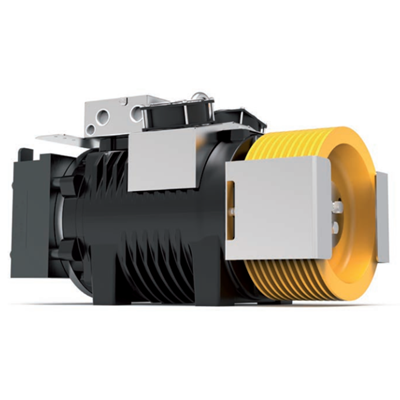

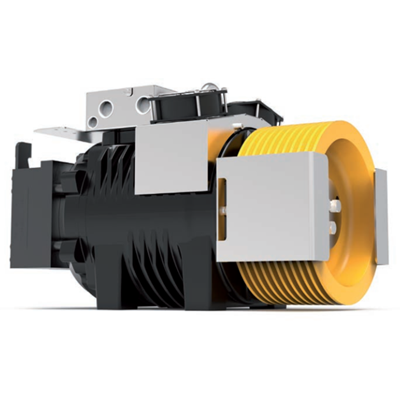

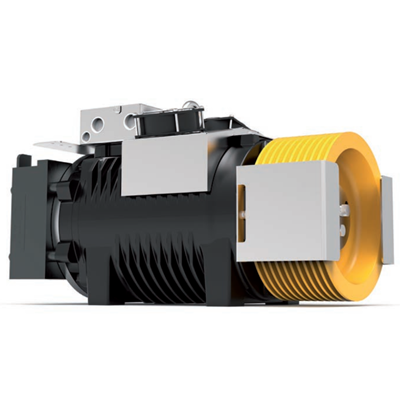

Gearless machine SG48BF, made in Italia:

* Rated load in 750kg, Speed 1.75m/s, Traction sheave 400mm, Power range 14.7kw, 5 rope D10x17

* Rated load in 800kg, Speed 2m/s, Traction sheave 320mm, Power range 14.7kw, 5 rope D10x17

* Rated load in 1000kg, Speed 1m/s, Traction sheave 320mm, Power range 9kw, 8 rope D8x12

* Rated load in 1000kg, Speed 1.5m/s, Traction sheave 320mm, Power range 14.7kw, 8 rope D8x12

* Rated load in 1000kg, Speed 2m/s. Traction sheave 360mm, Power range 20.7kw, 8 rope D8x12

Quantity

Details

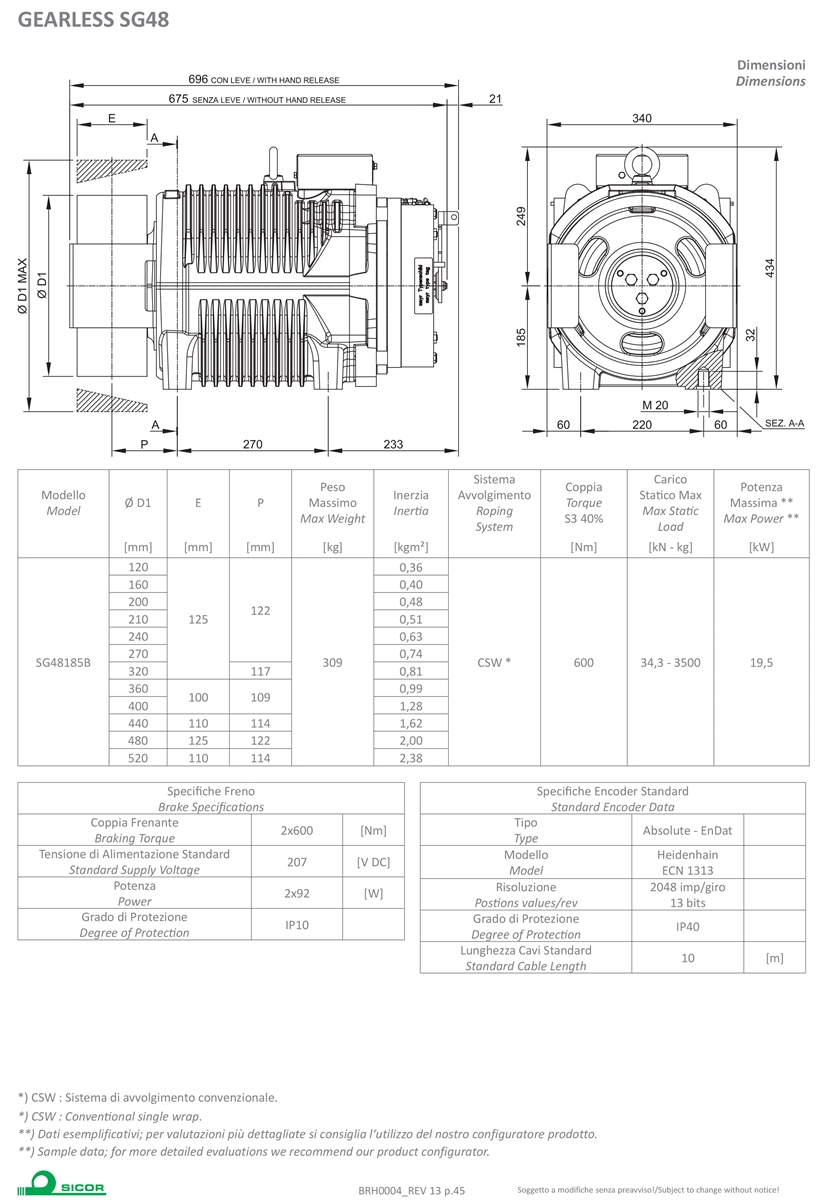

Rated Torque – without fan 600Nm (S3 40%)

                              with fan 720Nm (S3 40%)

Max Load in 2:1 – 1600kg (240mm traction sheave)

Car speed – 0,63 … 2,5m/s

Power Range – 4,1 … 23,4 kW

Traction Sheaves – 120 … 440mm

Max Static Load – 34,3 kN – 3.500kg

Max Width – 340mm

Braking Torque – 2x550Nm (SG48/F) – 2x850Nm (SG48HF)

Max Weight – 310kg (SG48F) – 350kg (SG48HF)
