Maximum static load: 1700 kg
Maximum gearless weight: 140 kg
Supply voltage: 360V – 208V

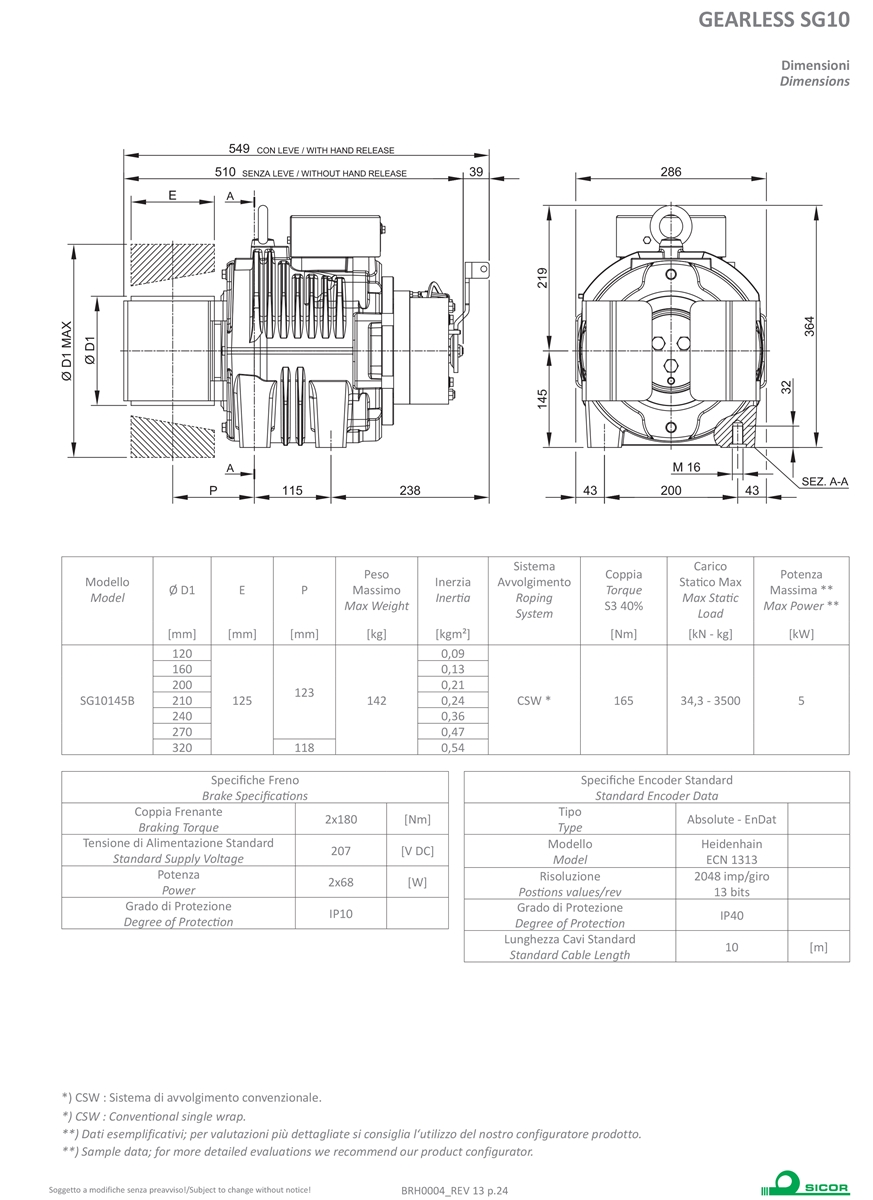

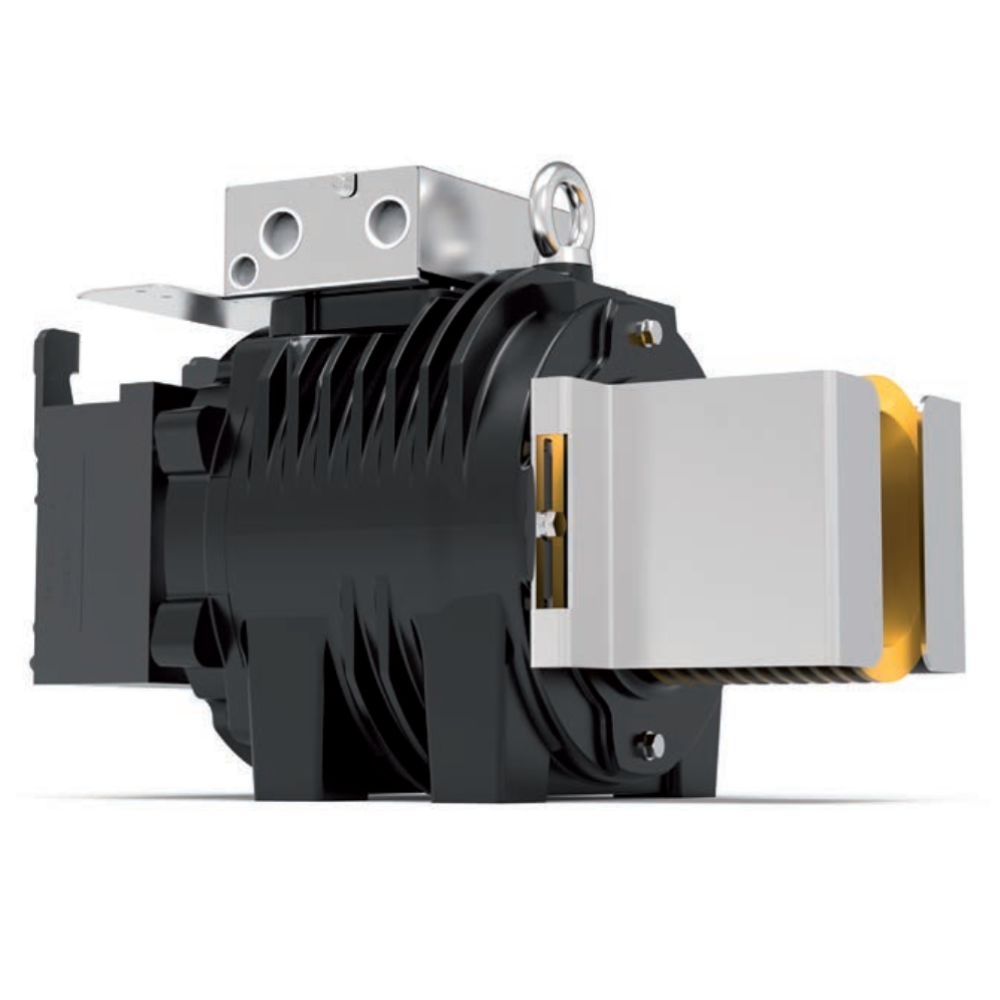

The SG10145B gearless model has been specifically developed for lifting applications in 2:1 with load capacity starting from 320kg
Rated Torque – 165Nm (S3 40%)
Max Load in 2:1 – 800kg (120mm traction sheave)
Car speed – 0,63 … 1,6m/s
Power Range – 2,1 … 5 kW
Traction Sheaves – 120 … 320mm
Max Static Load – 34,3 kN – 3.500kg
Max Width – 286mm
Braking Torque – 2x180Nm
Max Weight – 142kg
