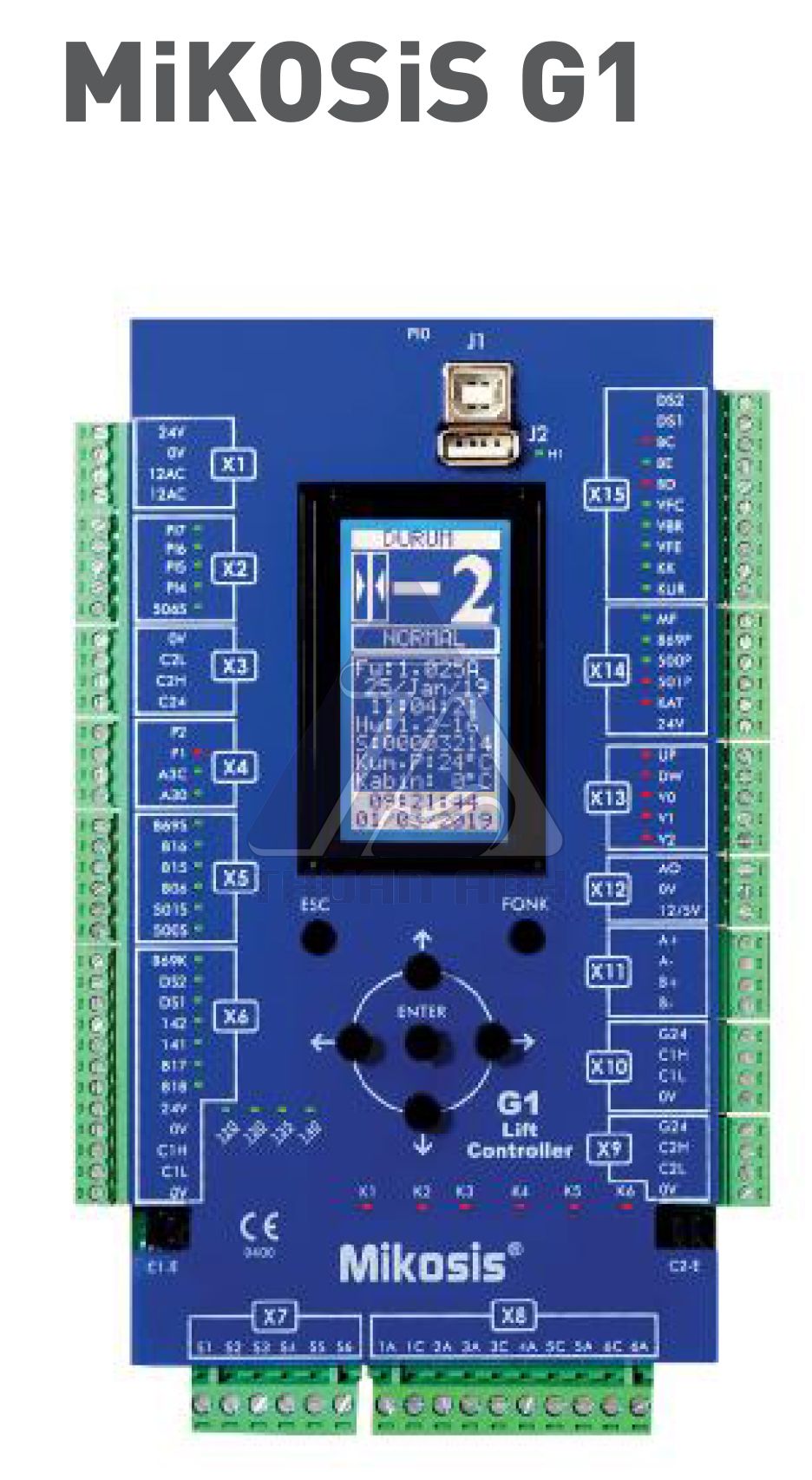

The elevator controller G1 from MIKOSIS is an advanced controller that allows for convenient and safer installation. The controller is designed with very specific components to reduce costs and increase customer comfort. These controllers have been developed according to the modern technology of programmable microprocessors (ARM Cortex-M3 core, 120 MHz, 150DMPs 32-bit MCU), thereby displaying the status of the GLCD screen. ladders and errors. Multi-layer printed circuit board ensures maximum protection against electromagnetic interference. Cost savings of installation based on CAN bus communication technology. Stop the floor based on the location signal taken from the encoder or 2 sensors.
GENERAL TECHNICAL CHARACTERISTICS
Speed
1.6 m/s
Stop
32 stop
Control Group
Simplex, duplex
Voltage
17 – 30 VDC
I/O
30 input PNP
8 output NPN
1 input encoder
6 role output NO
1 input tractor overheating test PTC
1 output analog
Safety circuit
130 – 250 VAC
Data
Saving, copying parameters and error codes to memory cards via USB is easy for installation and maintenance
