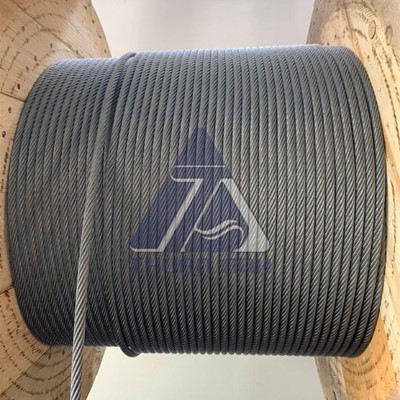

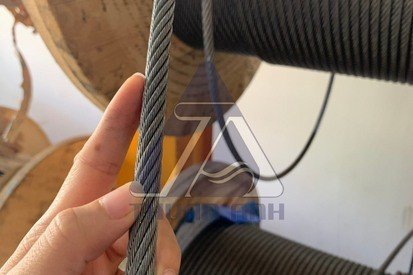

Overview of Elevator Steel Wire Rope 8x19(S)+FC – Diameter 12mm, Strength 1570N/mm²
In the operational structure of modern elevators, steel cables play an indispensable role in ensuring operational safety, technical stability, and the overall lifespan of the entire system. One of the widely used cable types today is the 8x19(S) steel cable with a fiber core (FC), with a diameter of 12mm and a tensile strength of 1570N/mm² – a reliable choice for many residential and commercial projects.
1. Technical specifications of 8x19(S)+FC steel wire rope – 12mm

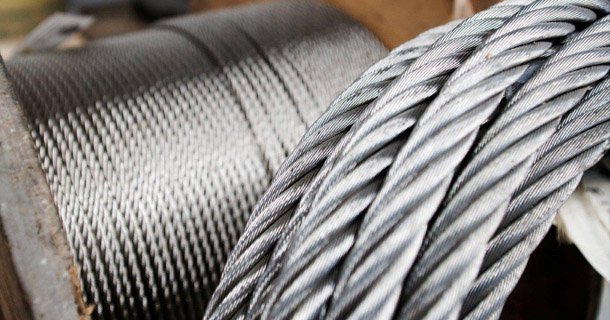

Configuration 8x19(S): The cable consists of 8 twisted strands, each containing 19 small steel wires, arranged in a Seale (S) structure. This is a commonly used technical design in the elevator industry, helping to effectively distribute forces, reduce mechanical wear, and ensure long service life.
Diameter: 12mm: With a size larger than standard common cables, this product is particularly suitable for high-capacity elevators, operating at high frequencies, or systems requiring exceptional durability.
Tensile strength 1570N/mm²: This level of load-bearing capacity ensures that the cable can operate continuously under medium to high load conditions, providing peace of mind during exploitation and use.
2. Outstanding performance advantages of the 8x19(S) FC core cable
The core cable line is highly regarded by engineers due to the following outstanding features:

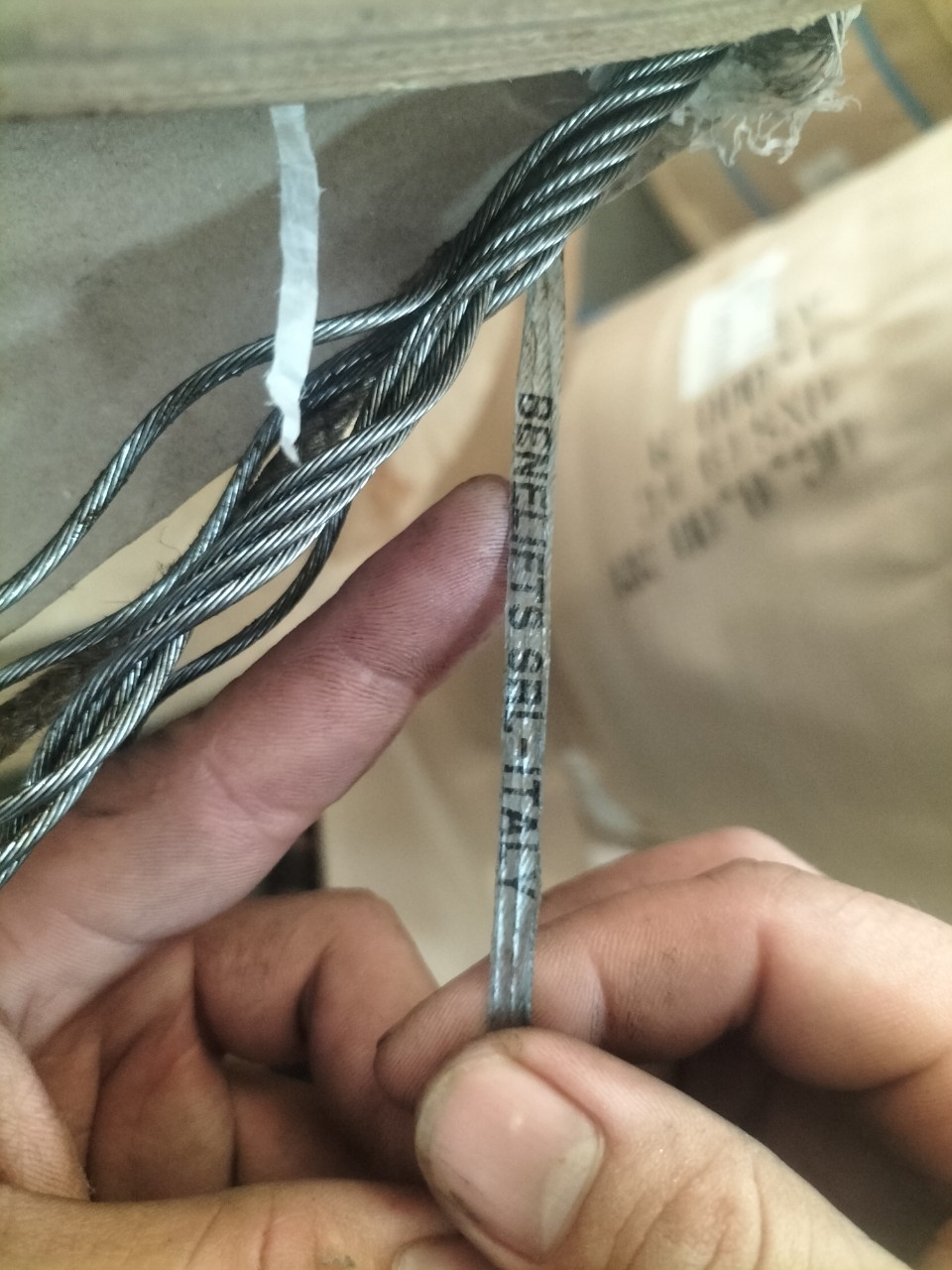

Fiber Core (FC): This structure enhances elasticity, allowing it to easily bend along small pulley grooves or complex guiding structures, thereby optimizing operational efficiency.
Noise reduction, smooth operation: Thanks to the soft core that absorbs vibrations well, the cable minimizes noise during use – especially suitable for projects that require high levels of quietness, such as office buildings or high-rise apartments.
Stable abrasion resistance: The Seale structure helps protect the outer layer of the cable from early wear, especially in environments with frequently changing loads.
Easy to install and replace: Lighter than steel core cables, convenient for installation or regular maintenance without requiring complex specialized equipment.
3. Practical application of 8x19(S)+FC steel wire rope – 12mm, 1570N/mm²
The product is suitable for deployment in many elevator systems requiring medium to heavy loads:
Large-capacity passenger elevators: Office buildings, shopping centers, hospitals, or schools.
High-rise residential elevators: Suitable for multi-story villas or townhouses with integrated private elevator systems.
Heavy-duty freight elevator: Used in factories, industrial zones, where there is a need to lift and transport goods of significant weight.
Flexible load capacity, compatibility with various types of pulleys, and stable mechanical durability enable this cable line to operate effectively in diverse environmental conditions.
Summary
8x19(S) steel wire rope with FC core, 12mm diameter, and tensile strength of 1570N/mm² is a reasonable solution for projects requiring a combination of performance, durability, and good shock absorption. With its sturdy Seale wire structure, flexible core, and versatile adaptability, this product line fully meets the necessary safety and technical standards in the modern elevator operation industry.
