Drako Steel Wire Rope 8x19(S)+FC – 8mm, 1370/1770 N/mm²: Flexible Solutions for Modern Lifting Systems
In mechanical systems operated by power transmission such as elevators, lifting equipment, hoists, and light cranes, choosing the right type of steel cable that meets technical standards and has a clear origin is a key factor in ensuring long-term performance and safety. One of the products currently trusted by engineers and contractors is the Drako 8x19(S) steel wire rope with a fiber core (FC), 8mm in diameter, with a tensile strength of 1370/1770 N/mm², manufactured in Germany – the cradle of the European precision engineering industry.
1. Outstanding technical specifications
Structure 8x19(S): The cable consists of 8 strands, each twisted from 19 small steel wires, constructed in a Seale pattern. The Seale design helps increase abrasion resistance, thanks to the larger outer strands that reduce direct contact between the cable and the pulley groove. This is a common structural design in the elevator and construction machinery industry.
Soft Fiber Core (FC): The cable uses a core made of jute or synthetic fibers, which helps increase flexibility, reduce vibration during operation, and is particularly suitable for systems with small pulleys or high bending angle requirements.
Diameter 8mm: This is a common size, easy to integrate with most guide pulley systems, especially in light-duty elevators, residential elevators, or compact industrial equipment.
Tensile strength 1370/1770 N/mm²: Two tensile strength levels allow users to flexibly choose according to load requirements, ensuring stable performance for both continuous and intermittent operating systems.
2. The advantage comes from the Drako brand – Germany

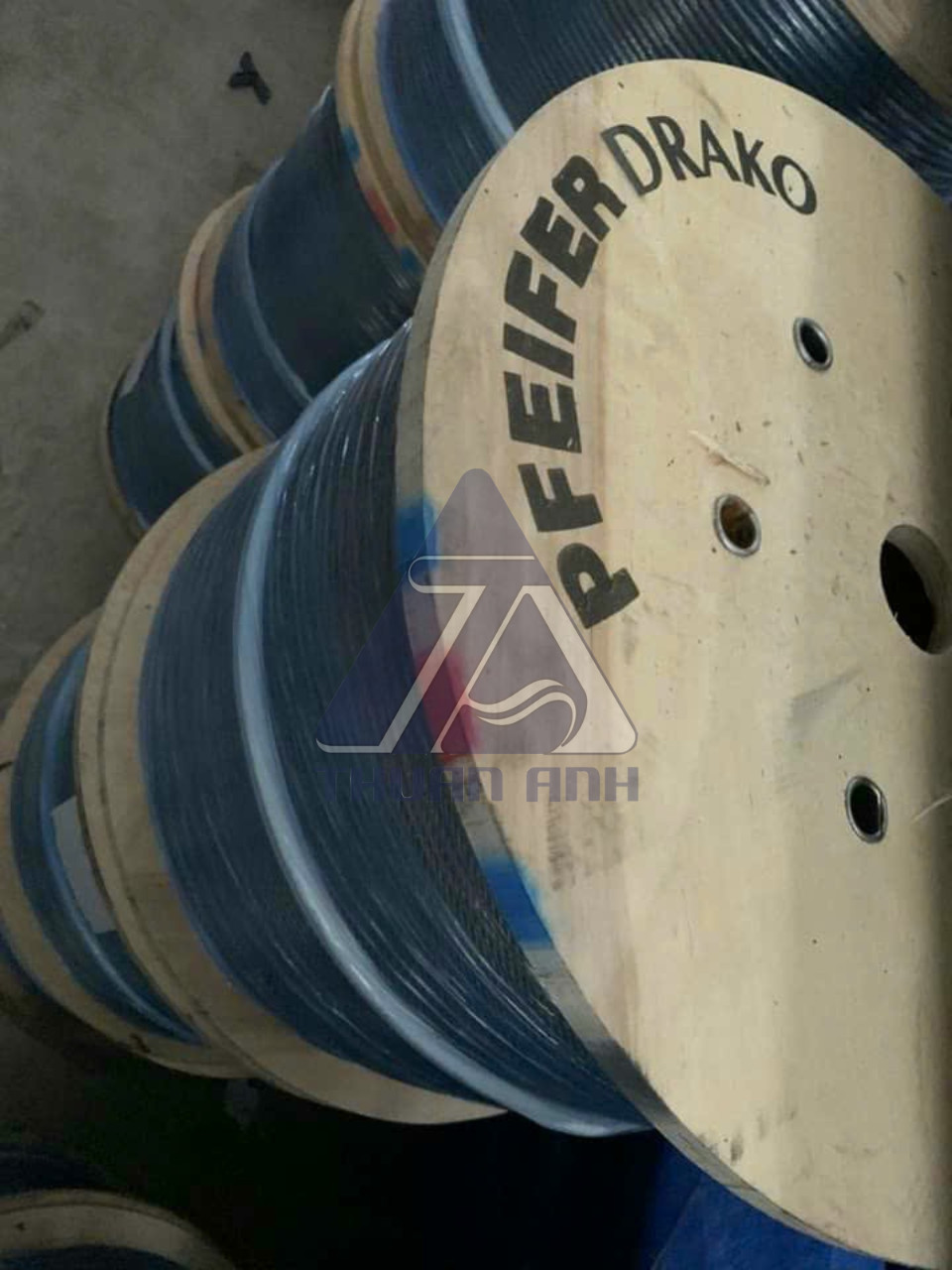

A brand with over 200 years of experience: Drako (PFEIFER DRAKO – Germany) is a globally renowned steel cable manufacturer, with a distribution network in over 70 countries. Product quality is strictly controlled according to EN/ISO standards, renowned for its durability and high resistance to mechanical fatigue.
Originating from Gustav Kocks – a legacy of German engineering: It is a brand that has previously supplied steel cables for prominent high-rise buildings such as the Petronas Towers, Moscow Television Tower, Sears Tower, and WTC New York.

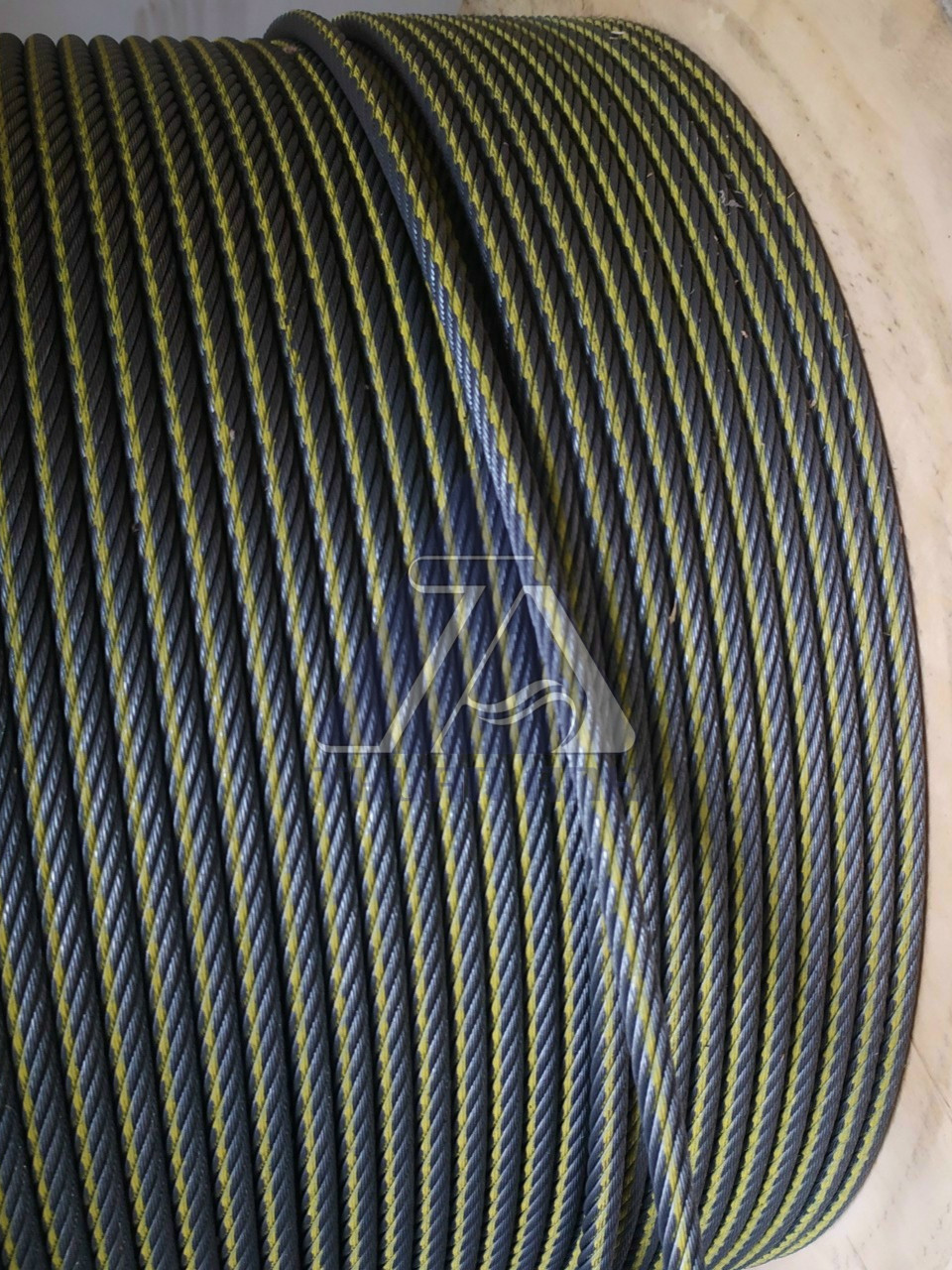

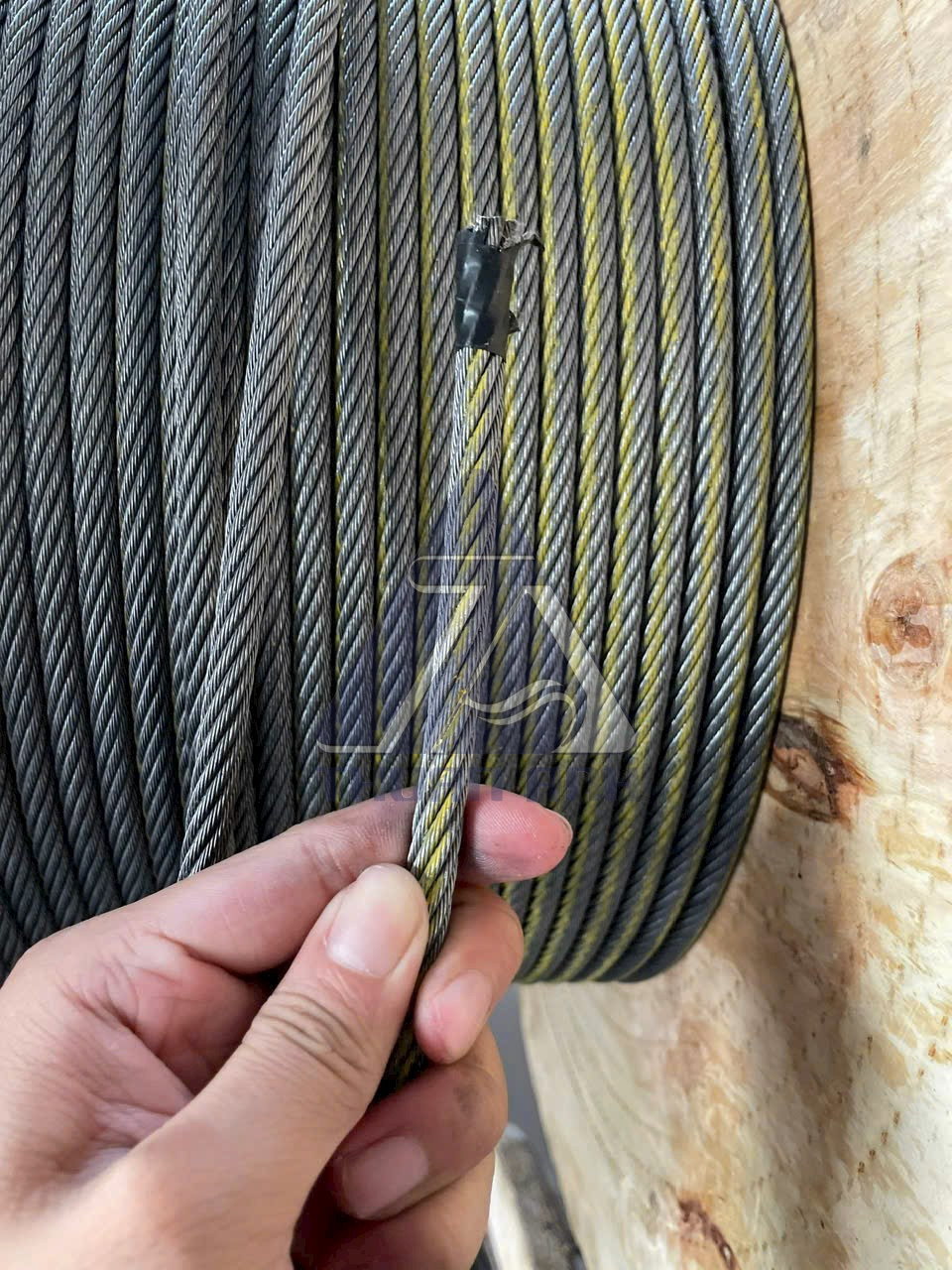

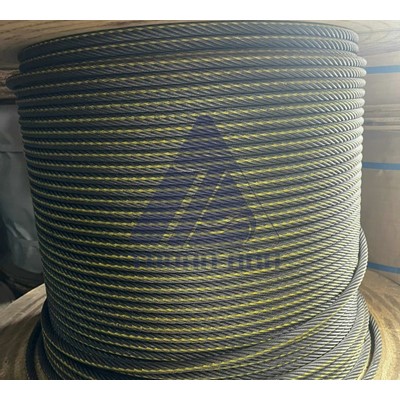

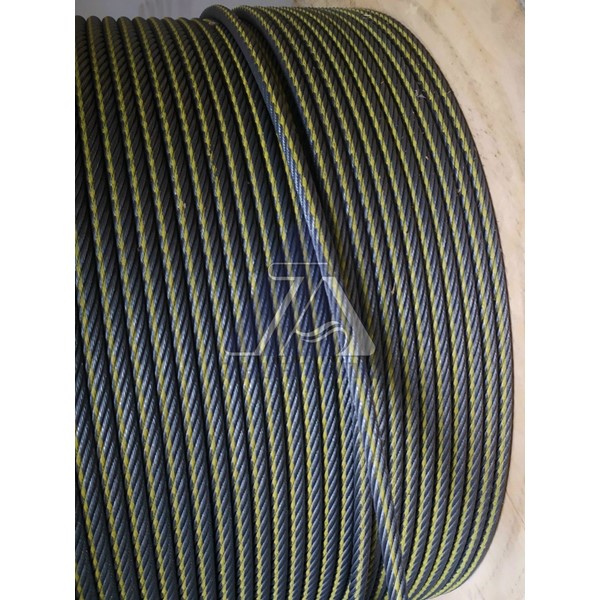

Easy to identify – superior safety: Genuine Drako cables manufactured in Germany are identified by an orange thread and a guiding twist line – helping installation units recognize incorrect twist directions for timely intervention, avoiding the risk of technical accidents.
3. Practical application of Drako 8x19(S)+FC cable – 8mm Practical applications of Drako 8x19(S)+FC – 8mm cable
With a flexible technical structure and proven durability, this cable line is suitable for deployment in various environments:
Small to medium-sized passenger elevators: Townhouses, villas, mini apartments.
Light-duty freight elevator for warehouses, medium and small manufacturing plants.
Lifting equipment such as hoists, light cranes, mobile scaffolding.
The bracing system in construction, scaffolding, and structural frames needs to be elastic.
Conclusion
Drako 8x19(S) steel wire rope with fiber core (FC), 8mm, 1370/1770 N/mm² is an ideal choice for projects requiring smooth operation, high flexibility, and stable performance. With clear origin from Germany, a global brand, and fatigue-optimized design, the product not only meets stringent technical criteria but also provides peace of mind regarding quality and long-lasting durability.
