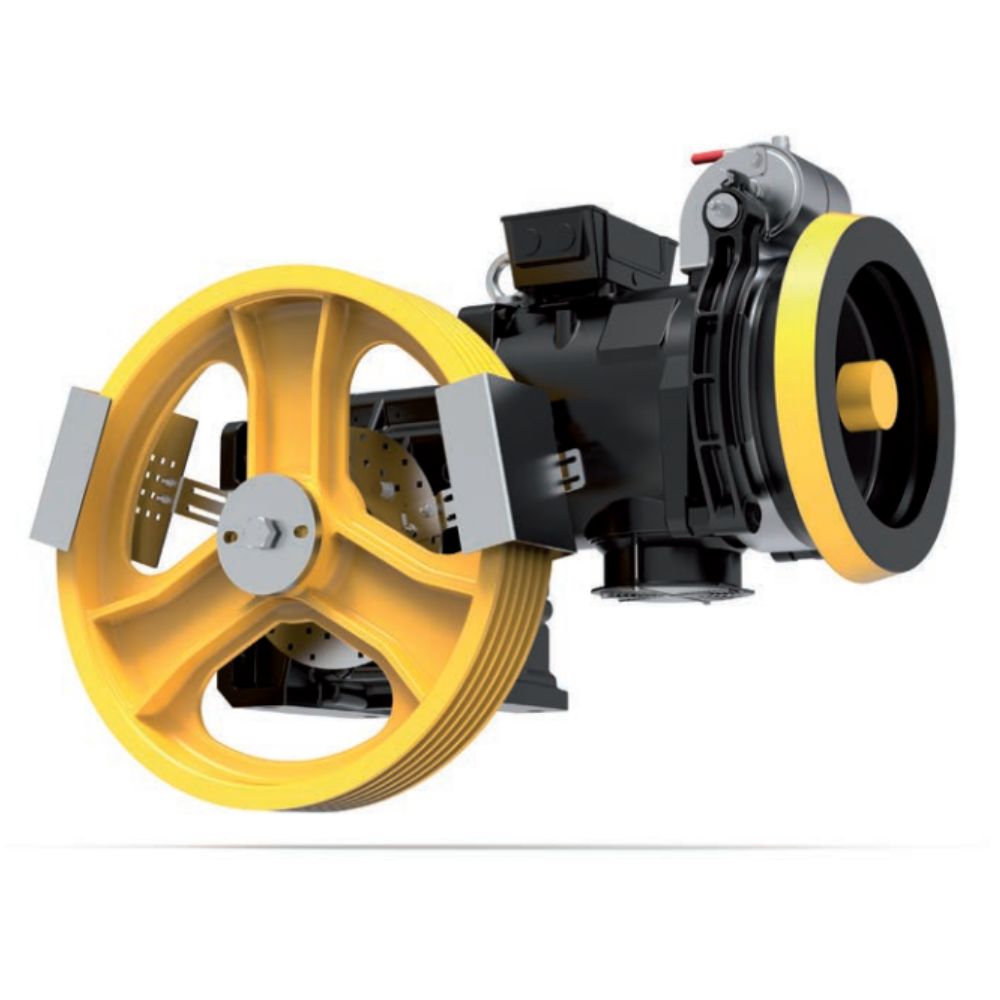

Sicor geared machine SH140, import from Italia:
* Sicor geared machine SH140 - 630kg, Speed range: 1.5m/s, Traction sheave 560mm, Power range: 9.2kw, 6 rope D10 x 17,
* Sicor geared machine SH140 - 750kg, Soeed range 1m/s, Traction sheave 560mm, Power range 7.5kw, 5 rope D10 x 17
* Sicor geared machine SH140 - 750kg, Speed range 1.5m/s,Traction sheave 480mm, Power range 9.2kw, 6 rope D10 x 17
Max Static Load – 3300kg (3500kg SH140TS)
Max Rated Load in 1:1 – 875kg
VVVF Power Range: 2,7 … 11kW (50Hz) – 4 … 12kW (60Hz)
AC2 Power Range: 2,7 … 9 kW (50Hz) – 4 … 10kW (60Hz)
Car Speed – 0,27 … 3m/s (50Hz) – 0,3… 3,6m/s (60Hz)
Traction Sheaves – 360 … 600mm
Gear Ratio – 1/71; 1/52; 1/45; 1/37; 2/53; 2/71; 3/47
Oil Capability – 3,6l
Gear Weight – 280kg (SH140) – 290kg (SH140TS)
