SH110 (320 - 480kg)

Product code: SH110B

Call

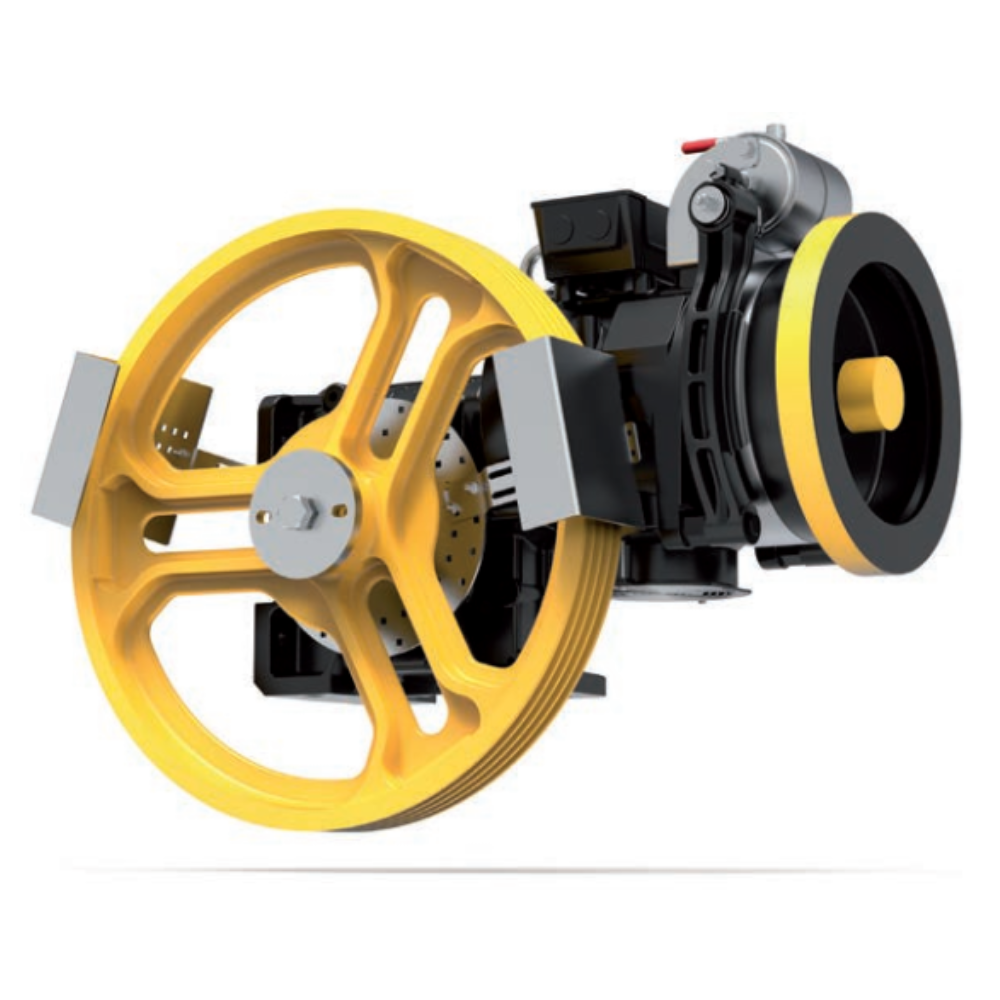

Sicor geared machine, import form Italia:

Máy kéo Sicor SH 110B, có hộp số, nhập từ Ý:

* Rated load in 320kg, speed 1m/s, traction sheaves 360mm, power 4kw, 4 rope 8x14

* Rated load in 320kg, speed 1.57m/s, traction sheaves 550mm, power 5.5kw, 5 rope 8x14

* Rated load in 320kg, speed 1.75m/s, traction sheaves 480mm, power 5.5kw, 5 rope 8x14

* Rated load in 480kg, speed 1m/s, tractione sheaves 360mm, power 5.5kw, 5 rope 8x14

Quantity

Details

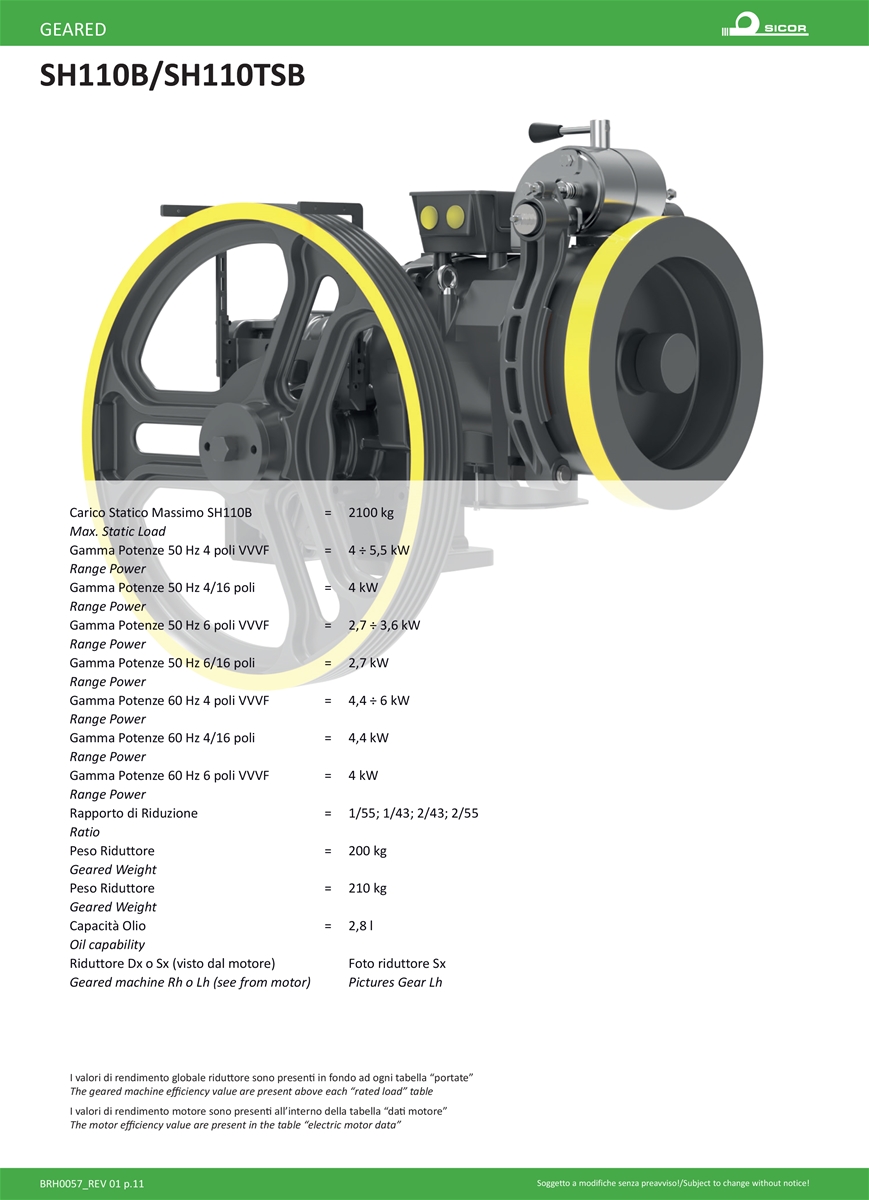

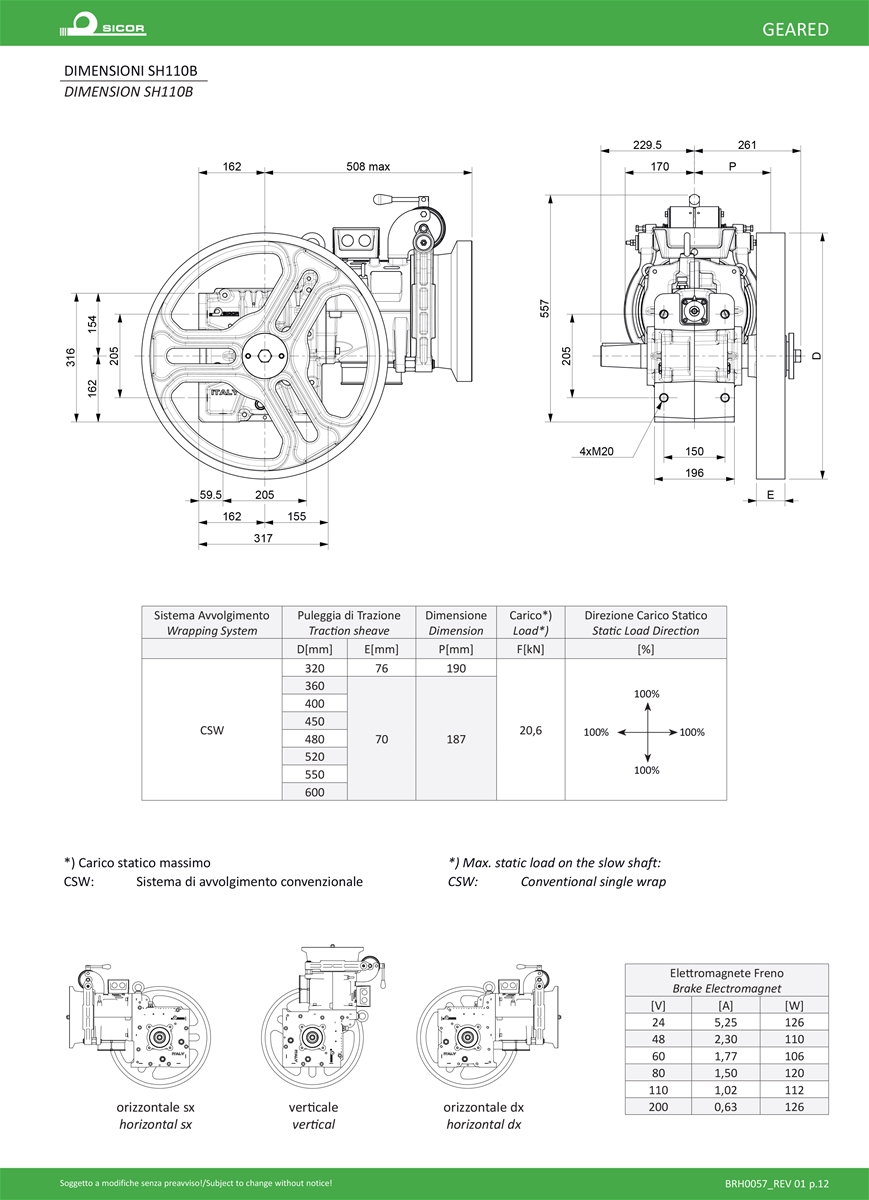

Sicor Gearless machine - SH 110B, made in Italia

Max Static Load  – 2100 kg (SH110B)

Max Rated Load  in 1:1 – 400kg

VVVF Power Range: 2,7 … 5,5kW (50Hz) – 4 … 6kW (60Hz)

AC2 Power Range: 2,7 … 4 kW (50Hz) – 4,4kW (60Hz)

Car Speed – 0,3 … 2,2m/s (50Hz) – 0,37 … 2,6m/s (60Hz)

Traction Sheaves – 320 … 600mm

Gear Ratio – 1/55; 1/43; 2/43; 2/55

Oil Capability – 2,8l

Gear Weight – 210kg
