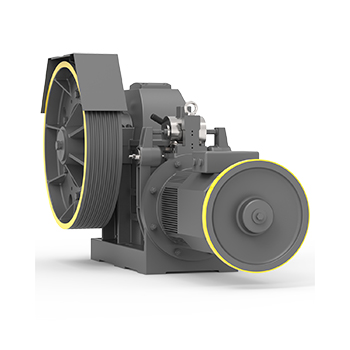

Sicor gearless machine - MR26, made in Italia
Rated load in: 2000kg
Speed: 1.0m/s
Power: 20kw
8 rope D12 * 600
Max Static Load – 6600 kg
Max Rated Load in 1:1 – 3000kg
VVVF Power Range:– 11 … 43kW (50Hz) – 12 … 47kW (60Hz)
AC2 Power Range: 11 … 30 kW (50Hz) – 12 … 33kW (60Hz)
Car Speed – 0,4 … 3,4m/s (50Hz) – 0,5… 4m/s (60Hz)
Traction Sheaves – 560 … 800mm
Gear Ratio – 1/72; 1/57; 1/44; 2/63; 2/45; 3/55
Oil Capability – 10,8l
Gear Weight – 1200kg
