What is a guide shoe for an elevator?

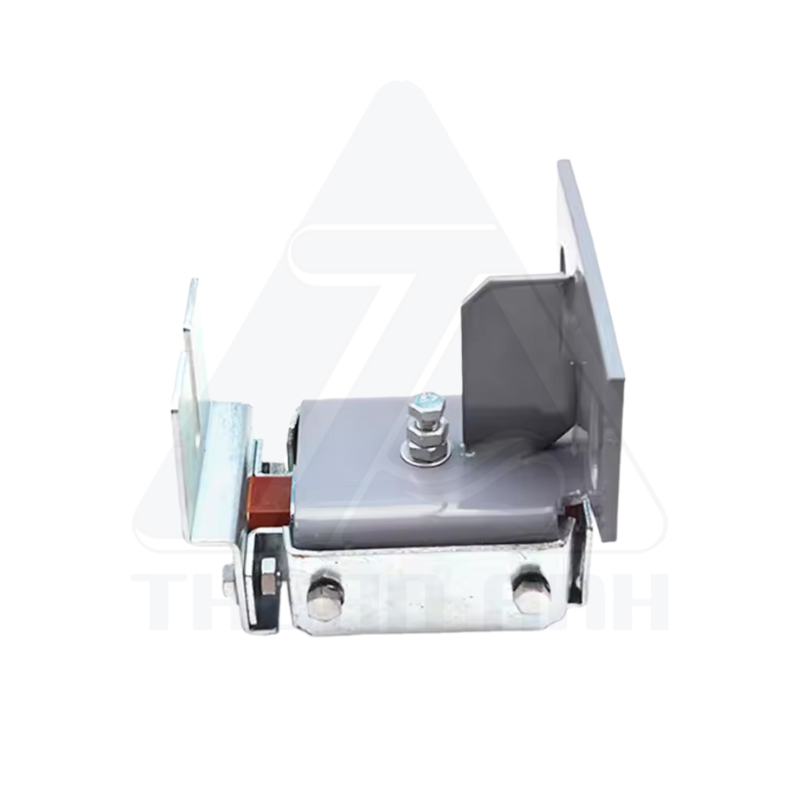

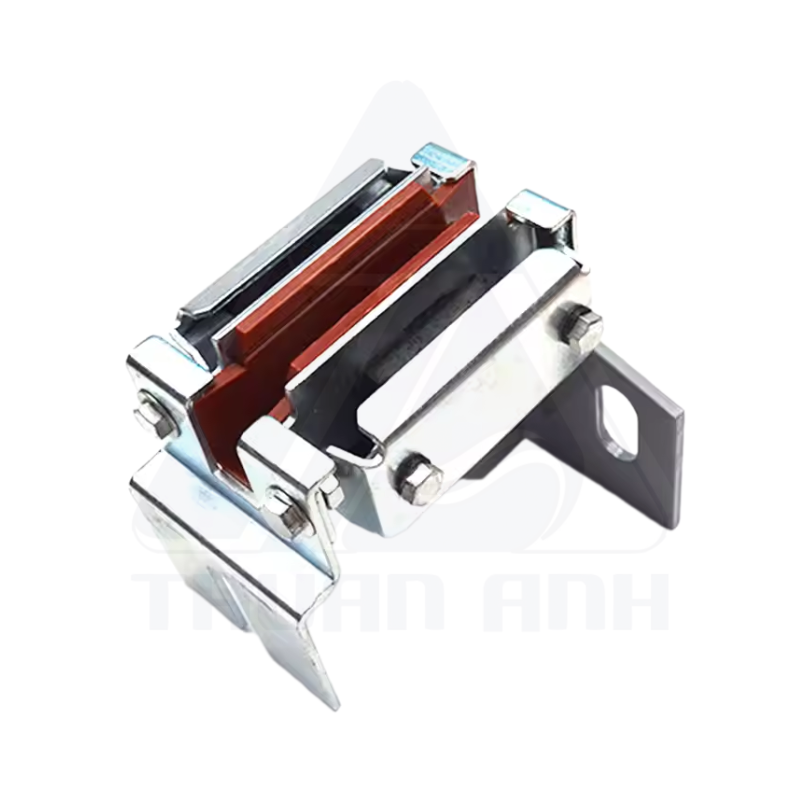

Guide shoe – also known as sliding block or guide block – is an essential technical component in the operation of an elevator system. The main role of this device is to help the cabin and counterweight move along the vertical axis accurately, minimizing vibration and increasing stability throughout the operation process.
Currently, Thuan Anh Elevator Components provides a full range of popular shoe lines such as T70-1A, T82/A, T50/A, T114, T78, T89..., suitable for a variety of installation needs from residential to industrial.
Reasons to choose high-quality guide shoes
Although they occupy a small area in the system, guide shoes directly affect the smooth and safe operation of the elevator. Here are the outstanding benefits:
Affordable prices: Types of shoes like T70-1A, T82/A, T50/A... are reasonably priced, helping to optimize investment costs while still ensuring effective use.
Sturdy structure: The base is made from high-quality steel, with good heat resistance and no rusting. The sliding pads are made from high-quality PP or PE plastic, durable, corrosion-resistant, and difficult to ignite.
Smooth operation: The cabin moves smoothly, minimizing noise and vibrations regardless of whether it is heavily or lightly loaded.
Quick installation, simple maintenance: The installation is easy; just apply regular lubrication with oil or grease to maintain stable performance.
Exceptional durability: With high-quality materials, the shoe has a long lifespan, saving on maintenance and replacement costs over time.
Where should the guide shoes be installed on the elevator?
Usually, each cabin will be equipped with 4 guide shoes, evenly distributed at the 4 corners in symmetrical positions. This helps distribute the force evenly on the guide rails and keeps the cabin stable during upward or downward operation.
However, to ensure the system operates efficiently and with minimal wear, it is necessary to choose the right type of shoe that matches the rail size and the technical specifications of the elevator. This ensures perfect compatibility while extending the lifespan of the entire operating system.
For example: T78 shoes should be used with T78 rails, or T89 with T89 rails. This synchronization is the key to ensuring the elevator operates reliably, smoothly, and saves on long-term maintenance costs.
