Guide rails T50

Product code: R T50

Call

T50 imported guide rail for elevators - 5m long

Origin: China

Quantity

Details

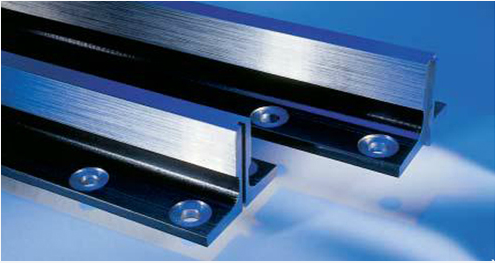

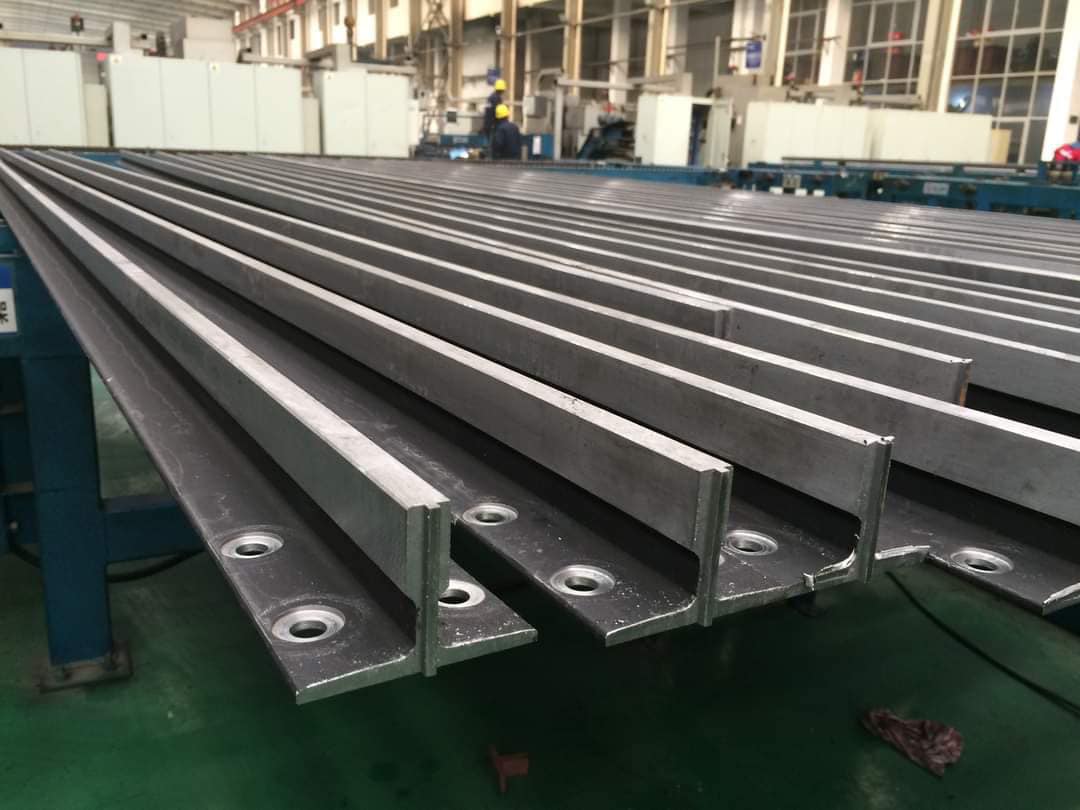

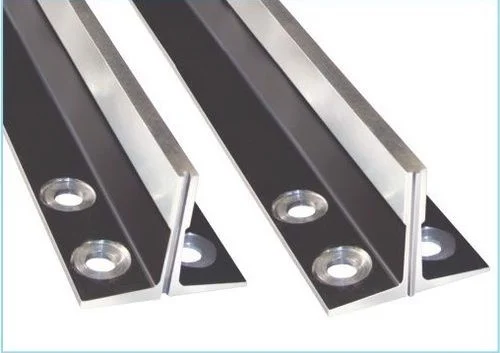

Guide rails (elevator rails) are components that direct the up-and-down movement of the cabin and counterweight, ensuring the elevator operates safely and stably.

Common types of rails
Types such as T50, T78, T89, TH5A, T114 are suitable for different loads.

Main function
Cabin and counterweight guiding.

Limit free fall when the mechanical brake is engaged.

In some cases, they are even the focal point of the engine.

Advantages of using standard-compliant rails
Safety: Easily integrates mechanical brakes.

Stable operation: Straight rail, easy connection with 8-hole bass.

Durable: Low damage, long lifespan.

Smooth and clean: Use lubricant oil instead of grease, reduce noise.

Quick installation: No welding required during installation.

How to choose the right rail
Selection based on:

Elevator load capacity

Material rail

Durability and brand

Usually, the cabin and counterweight will use the same type of rail for synchronization and ease of installation.
